LUCA18BL

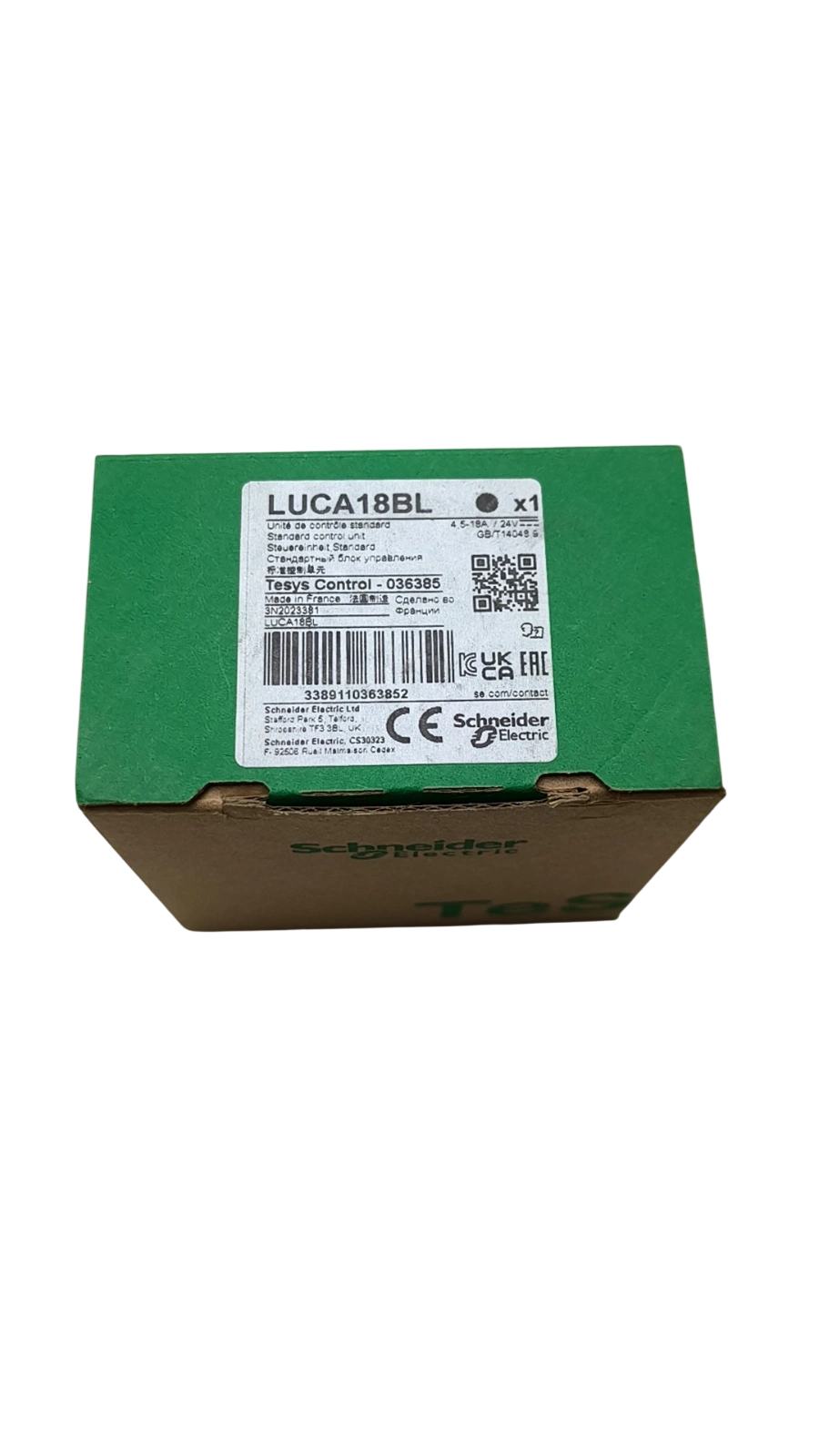

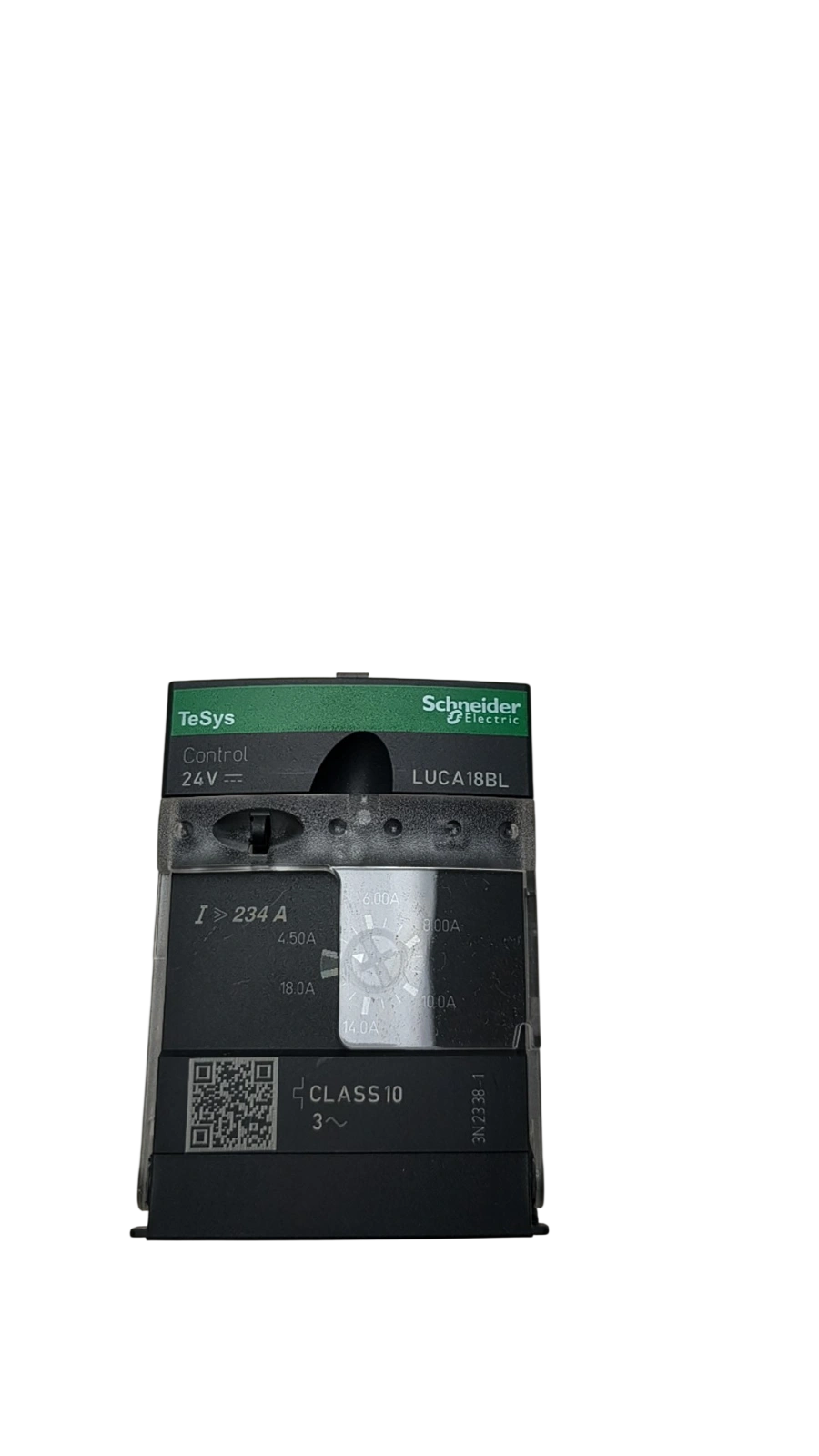

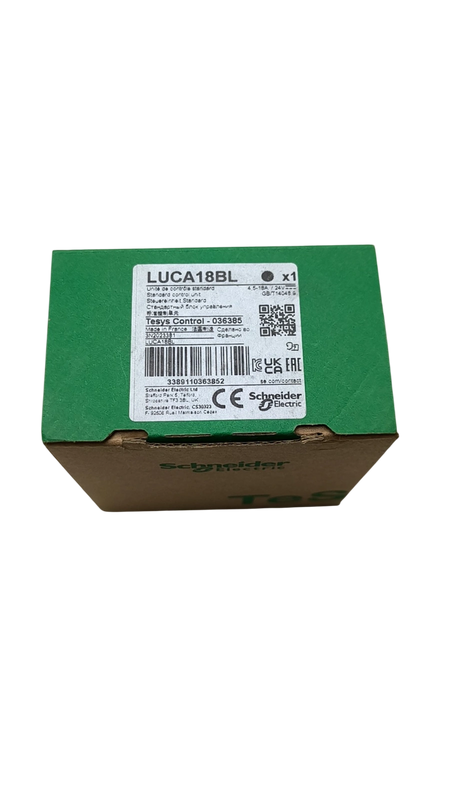

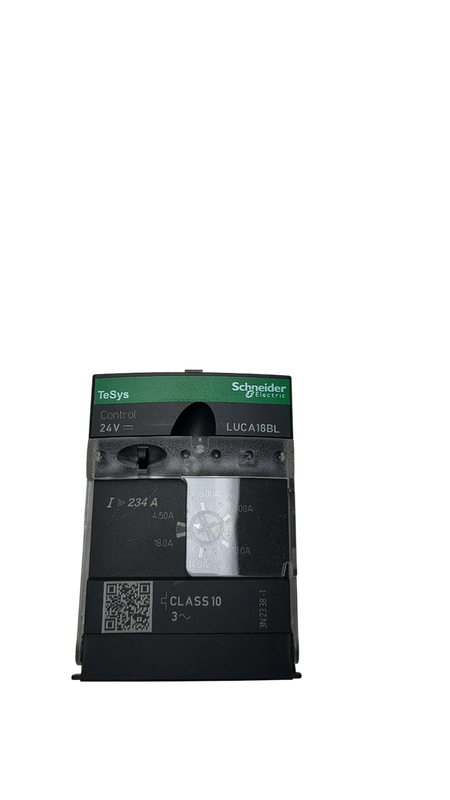

Product Overview Brand: Schneider Electric MPN: LUCA18BL Designation Code: 036385 Product: TeSys Ultra Standard Control Unit This TeSys Ultra standard control unit is designed for 3-phase motor applications up to 7.5kW at 400V. It integrates with TeSys U power bases (e.g., LUB32, LUB38) to create a comprehensive starter controller. Key Features - Thermal Protection Adjustment Range: 4.5-18 A - Thermal Overload Class: 10 (40-60 Hz, -25-70 °C) - Control Circuit Voltage: 24 V DC - Rated Operational Voltage: 690 V AC - Motor Power kW (50/60 Hz): - 7.5 kW at 400-440 V AC - 9 kW at 500 V AC - 15 kW at 690 V AC - Function Available: Manual reset, protection against phase failure and phase imbalance, protection against overload and short-circuit, earth fault protection. - Phase Failure Sensitivity: Yes Technical Specifications - Dimensions (H x W x D): 66 mm x 45 mm x 60 mm - Net Weight: 0.135 kg - IP Degree of Protection: IP20 (front panel and terminals), IP40 (front panel outside connection zone) - Ambient Air Temperature For Operation: -25 to 70 °C - Ambient Air Temperature For Storage: -40 to 85 °C - Operating Altitude: 2000 m (6561.68 ft) Compliance and Certifications - Product Certifications: CE, UL, CSA, CCC, EAC, ASEFA, ATEX, Marine - Standards: EN 60947-6-2, IEC 60947-6-2, UL 60947-4-1, CSA C22.2 No 60947-4-1 - Sustainable Offer Status: Green Premium product - RoHS/REACH Compliance: Yes (Compliant with Exemptions, Mercury Free, PVC Free) Product Identifiers - EAN: 3389110363852 - Country of Origin: FR - Tariff Code: 85363010

We ship orders within 1–3 business days.

• Pallet shipments can be arranged individually to suit your needs.

• Express delivery options are available on request for urgent orders.


For shipping inquiries, feel free to contact us at +48 883 162 718.

Our goal is to provide fast and flexible shipping solutions tailored to your requirements.

All prices listed are net prices (subject to applicable VAT). A commercial invoice will be issued following your purchase.

• Buyers from Poland: 23% VAT will be added to the price.
• EU Companies: A valid EU VAT ID is required (0% VAT – Intra-Community supply of goods).
• EU Private Individuals: VAT will be charged in accordance with the regulations of the country of residence.

We stand behind the quality of our products.

• Used parts come with a 30-day warranty.

• New parts are covered by a 12-month warranty.


Your satisfaction and confidence in our components are our priority.

New Factory Sealed - A brand-new, unused, unopened, undamaged item and in its original packaging, factory sealed.

New Surplus - A new, unused, undamaged item. Might be without original packaging or replacement packaging. If there is a box, it will be often opened.

Used - The item was previously Used. The item may be missing the original packaging.

Refurbished - Item was inspected, cleaned, and repaired to full working order and is in excellent condition

Defective - An item that does not function as intended or is not fully operational. This includes items that are Defective in ways that render them difficult to use, items that require service or repair, or items missing essential components.
